Mesh Door Wall Mount Rack Enclosure Server Cabinet With Adjustable Mounting Rails
Product Details:
Place of Origin: China
Brand Name: TYXD
Model Number: TYXD-RC-37
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: USD25.5—37.3
Packaging Details: Carton box
Delivery Time: 7-15 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 12000 pcs per month
Contact Now
Detailed Product Description
Model: TYXD-RC-37 Door Type: Mesh Door
Weight: 12kg Size: 380*600*450mm
ODM/OEM: Yes Fan: Optional(4)
High Light:

server rack cabinet

,

network rack enclosure

6U custom steel server rack cabinet mesh door network cabinet

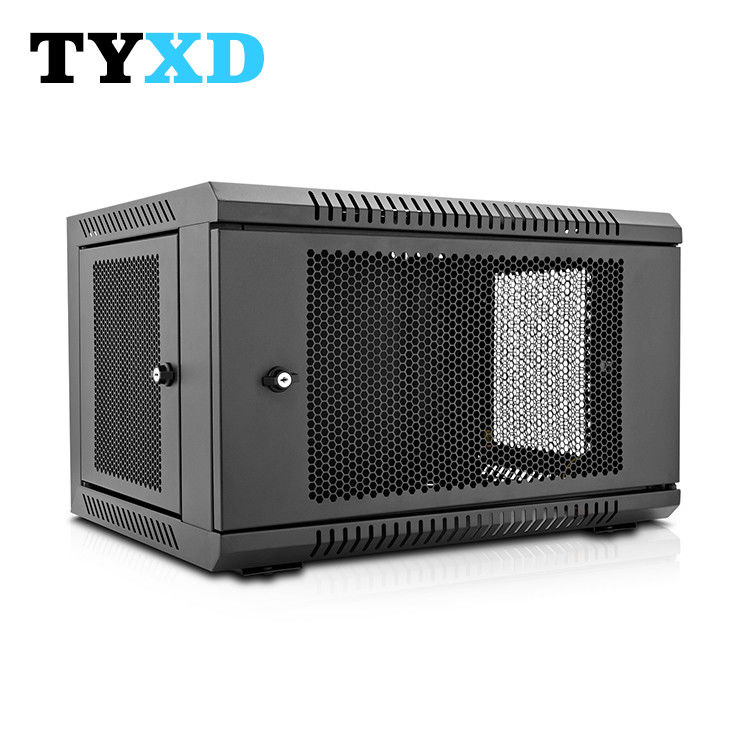

This is a 6U 19inch standard size server rack.

Reserved caster mounting hole


  • Fully assembled, locking 6U cabinet with vented door and sides to keep equipment cool

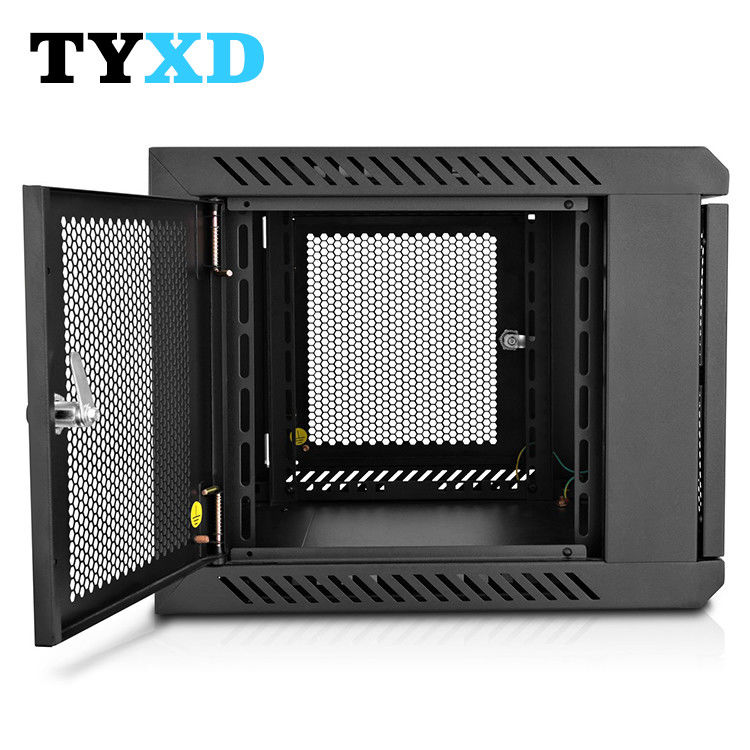

  • Fully adjustable mounting rails and numbered U positions, with square holes for easy equipment mounting

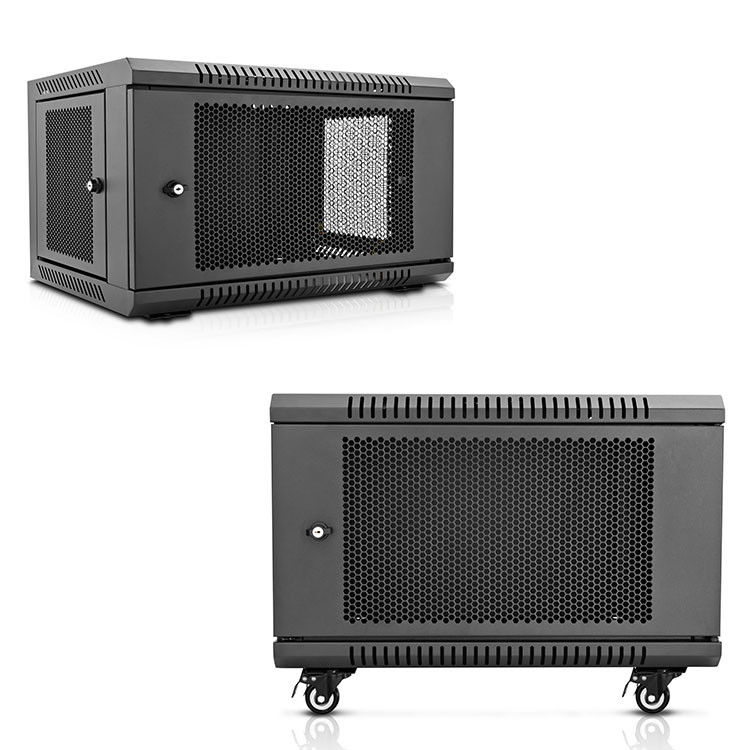

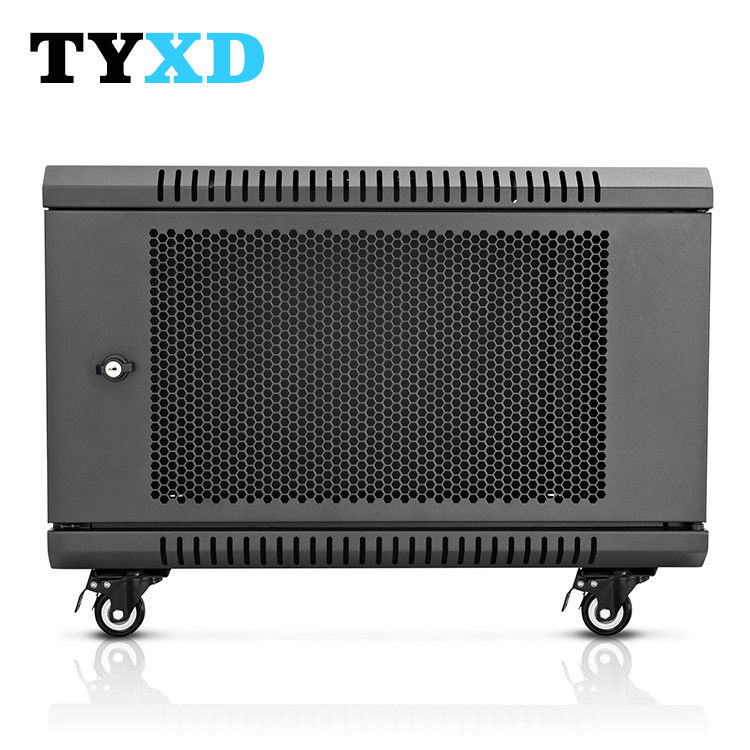

  • Included casters can be installed for the option of rolling on the floor or under desks for versatility

  • Removable top and bottom cable panels for a streamlined appearance.

The 6U Rack Wall Mount Enclosure from It is the perfect solution to install, secure and organize rack equipment in classrooms, retail locations, network closets and other locations with limited space. The vented, locking doors help to keep equipment cool and secure.

The side panels are easy to open for quick access to equipment, plus there are removable top and bottom cable panels for an organized workspace. Made from high-grade, cold-rolled steel.

Fully adjustable rails, numbered U positions and square rack holes allow for easy installation of rack equipment. Included casters give you the option to easily move your equipment, or roll it under a desk for total flexibility. Additionally, the cabinet is fully assembled for rapid deployment.



Model

TYXD-RC-37

Package Includes

Wall Mount Cabinet, 4 casters, set of keys for doors and sides, mounting hardware M6 (10)

Material

High grade cold rolled steel

Weight Limit

90.7 kg

Rack Hole Type:

M5 Square

Adjustable Mounting Depth

2.95-15.35 in (75-390 mm)

Rack Cable Management

Top & bottom removable cable access panels

Rack Security

Key Lock

Rack Weight Limit

200 lbs (90.72 kg)

Product Weight

12 kg

Product Dim (L/W/H)

17.72 x 23.62 x 14.49 in (450 x 600 x 368 mm)

Product Weight

26.46 lbs (12 kg)

Package Dim (L/W/H)

25.98 x 18.5 x 16.93 in (660 x 470 x 430 mm)

Package Weight

29.98 lbs (13.6 kg)

Additional Info

Front (reversible) & Rear Doors 6.5 mm diameter hexagonal holes with ventilation (air permeability) rate 85%



Mesh Door Wall Mount Rack Enclosure Server Cabinet With Adjustable Mounting Rails 0





Network cabinet & server rack. 2U up to 42U.



Mesh Door Wall Mount Rack Enclosure Server Cabinet With Adjustable Mounting Rails 1
