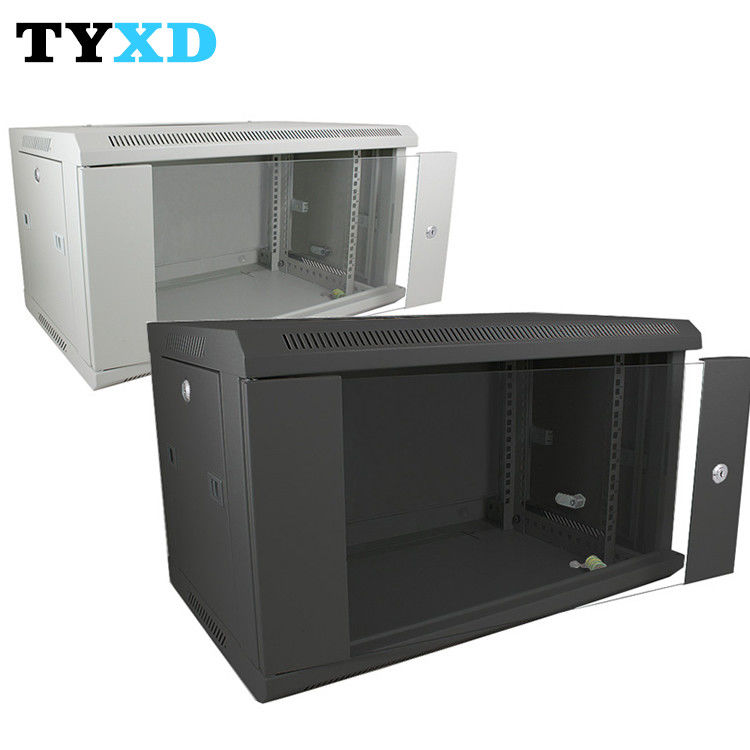

6U 9U Network Rack Cabinet Wall Mounted With Lockable Glass Front Door

6U 9U Network Rack Cabinet Wall Mounted With Lockable Glass Front Door

  • 6U 9U Network Rack Cabinet Wall Mounted With Lockable Glass Front Door
6U 9U Network Rack Cabinet Wall Mounted With Lockable Glass Front Door
Product Details:
Place of Origin: China
Brand Name: TYXD
Model Number: TYXD-RC-41
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: USD29.5—37.3 per piece
Packaging Details: Carton box
Delivery Time: 7-15 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 12000 pcs per month
Contact Now
Detailed Product Description
Model: TYXD-RC-41 Door Type: Glass Door
Install: Wall Mount Material: Cold Rolled Steel
Weight: 12.4kg Package: Carton Box And Foam Protection
High Light:

server rack cabinet

,

data center cabinet



6U/9U data cabinet wall mount ddf server rack cabinet network cabinet

Hsinda-RC-41 Network cabinet

  • Complete insepction on each product by 20 inspectors

  • Imported High Precision Equipment from Germany and Japan

TYXD 6u Wall Mounted Data Cabinet/ Data Rack 500mm Deep
500mm Deep Wall Mounted Data Rack

Our range of 500mm deep wall mounted cabinets have been redesigned and refreshed to offer users’ even better value for money, through better access, quicker and easier installation and improved aesthetic.
These wall mount data/comms cabinets are ideal for small network installations. The Data Racks have 19" mounting profiles at the front and rear of the cabinet, allowing easy installation of standard rackmount equipment.
Cable access is provided top and bottom, and the front door and side panels are lockable so that unwanted hands can't tamper with the equipment inside the Data Cabinet.


Features:

  • Lockable/removable side panels

  • Easy-mount wall adapter plate (for ease of installation)

  • 19" mounting profiles front and rear

  • Lockable Glass Front Door

  • Available in Grey (RAL7044) or Black (RAL9004)

  • Weight (KGS) 12.2

  • Static Loading (KGS) 60



Accessories are available on the following pages:

  1. The 6u 390mm wall mounted cabinets are available in Grey (RAL 7044) or Black (RAL 9004)
  2. Quick Release Side removable and lockable panels on both sides
  3. Adjustable 19 inch front and rear mounting profiles with "u" markings
  4. Top and bottom cable entry for easy patching
  5. 6u 500mm Deep Wall mounted Data Cabinet
  6. Need 110mm more depth? Go for the 500mm version instead.

TYXD-RC

41A

41B

41C

41D

External Height

370mm/6U

503mm/9U

External Width

600

External Depth

390mm

500mm

390mm

500mm

Internal working depth

320mm

425mm

320mm

425mm

Weight

11.7kg

13.4kg

13.8kg

16.2kg

Loading

60kg

Mounting

Front and rear




6U 9U Network Rack Cabinet Wall Mounted With Lockable Glass Front Door 0

Network cabinet & server rack. 2U up to 42U.
6U 9U Network Rack Cabinet Wall Mounted With Lockable Glass Front Door 1
