| Place of Origin: | China |
| Brand Name: | TYXD |
| Model Number: | TYXD-RC-49 |
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | USD28.8—USD37.3 per pcs |
| Packaging Details: | Carton box |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 5000 pcs per month |
| Size: | 6u*600*450mm(H X W X D) | Package: | Carton Box |
|---|---|---|---|
| Model: | TYXD—RC-42 | Material: | Cold Rolled Steel |
| Pretreatment: | Degreasing | Custom: | Acceptable |
| High Light: | server rack cabinet,data center cabinet |
||

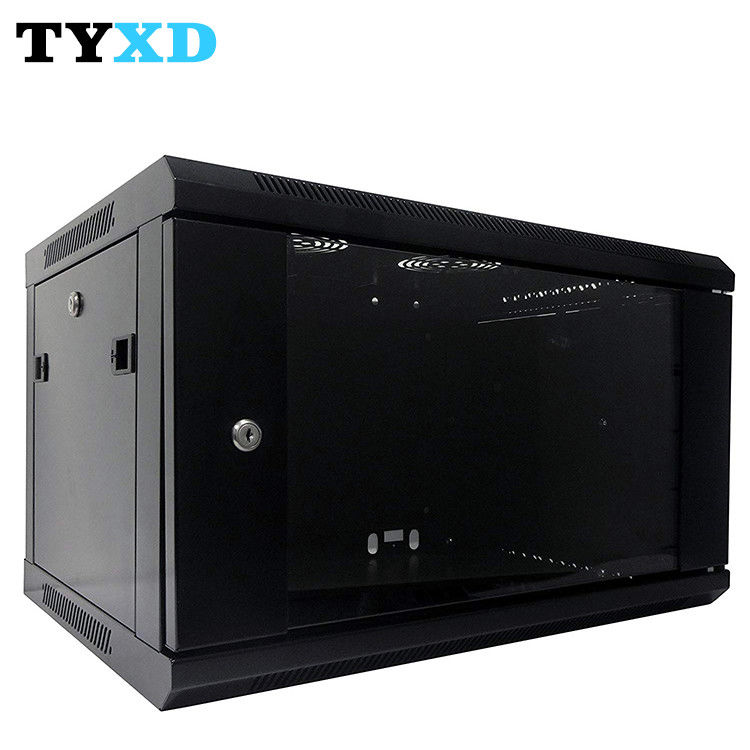

6U wall mount network cabinet telecom server cabinet rack 6U
Hsinda-Cabinet RC-49 Network cabinet
Complete insepction on each product by 20 inspectors
Imported High Precision Equipment from Germany and Japan
This is a 6U network cabinet, Suitable for all kinds of servers and network devices.
6u 450mm 19" Deep Wall Mounted Cabinet Our 6U wall mounted network cabinet is ideal for use when managing a small network, either at home or in an office environment.
The transparent glass makes it easy to monitor your equipment, and removal sides make for easy access. The cabinets are available in various sizes and are supplied fully assembled.
Each cabinet comprises a welded steel frame and adjustable front and rear 19" mounting profiles. A gland plate is situated in the top and bottom of the cabinet.
1. 19'' standard installation.
2. Turning angle: Glass front door is over 180°; Rear door is over 90°
3. Removable side panels, and side locks optional.
4. Knock out hole for entering cable on both of top cover and bottom panel
5. SPCC cold rolled steel material
6. Mounting rail : 1.2mm
7. Surface finish: high density powder coated
8. Degree of production: IP20
9. Static loading capacity: 60kg
10. Assembled frame structure, easy handling, transportation, to maximize save shipping cost.
11. Standing or wall mounting installation
12. Easy mounting installation
13. Easy operation and maintaining at the back
14. Color: Black RAL9004, Grey RAL7035.
|
Size |
370*600*450mm(H X W X D) |
|
Material |
1.2mm Cold rolled steel frame |
|
Finish |
Powder coating/ hot galvanizing |
|
Pretreatment |
Phosphorization |
|
ODM / OEM |
Acceptable |
|
Castor |
Optional |
|
Stand bar |
0 |
|
Fan(s) |
Optional |
|
PDU |
Optional |
|
Winder |
0 |
|
Shelf |
Optional |
|
Door |
Glass / Mesh |
|
Side door |
Dismountable |
|
Strengthen parts |
Holder, Pedestal, Stand column |
Network cabinet & server rack. 2U up to 42U.
