IP54 Outdoor 8U / 12U Steel Wall Mount Small Network Rack ODM / OEM cabinet

IP54 Outdoor 8U / 12U Steel Wall Mount Small Network Rack ODM / OEM cabinet

IP54 Outdoor 8U / 12U Steel Wall Mount Small Network  Rack ODM / OEM cabinet
IP54 Outdoor 8U / 12U Steel Wall Mount Small Network  Rack ODM / OEM cabinet
IP54 Outdoor 8U / 12U Steel Wall Mount Small Network  Rack ODM / OEM cabinet
Product Details:
Place of Origin: China
Brand Name: TYXD
Model Number: RC-72
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: USD 61.7-83.5
Packaging Details: Carton box and foam protection
Delivery Time: 15 days
Payment Terms: L/C, D/P, T/T, Western Union
Contact Now
Detailed Product Description
Material: Cold Rolled Steel / Stainless Steel Size: 8U(500mm)*570*500mm
Thickness: 1.0 / 1.2mm Finish: Powder Coating
Protection Level: IP54 Logo: Silk Print
Payment: L/C T/T
High Light:

server rack cabinet

,

data center cabinet

8U/12U Outdoor Server Cabinet Data Entry Cabinet Outdoor Network Rack Cabinet

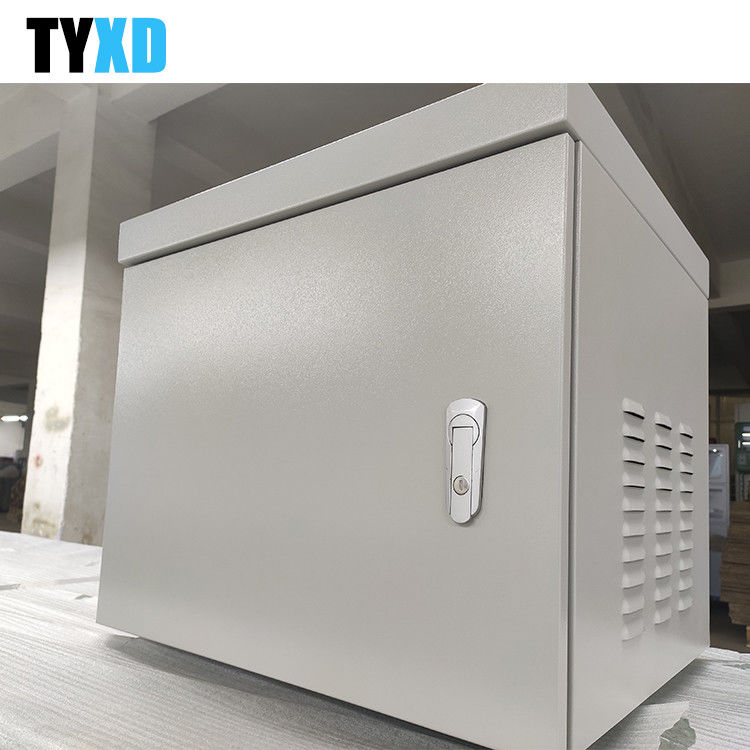

This is a 8U outdoor network cabinet.

This one is only suitable for those areas where rainfall is not very heavy, if you need a higher level of waterproof, you can refer to another product at the bottom of the page or consult the customer service staff for recommendations.



Able to withstand low temperature if you need. ( Add passivation treatment, special low temperature resistant spray powder, the price will be higher )





Size 500*570*500mm/Customized
Material Cold Rolled Steel/Stainless steel
Finish Powder coating
Pretreatment Phosphorization
ODM/OEM Acceptable

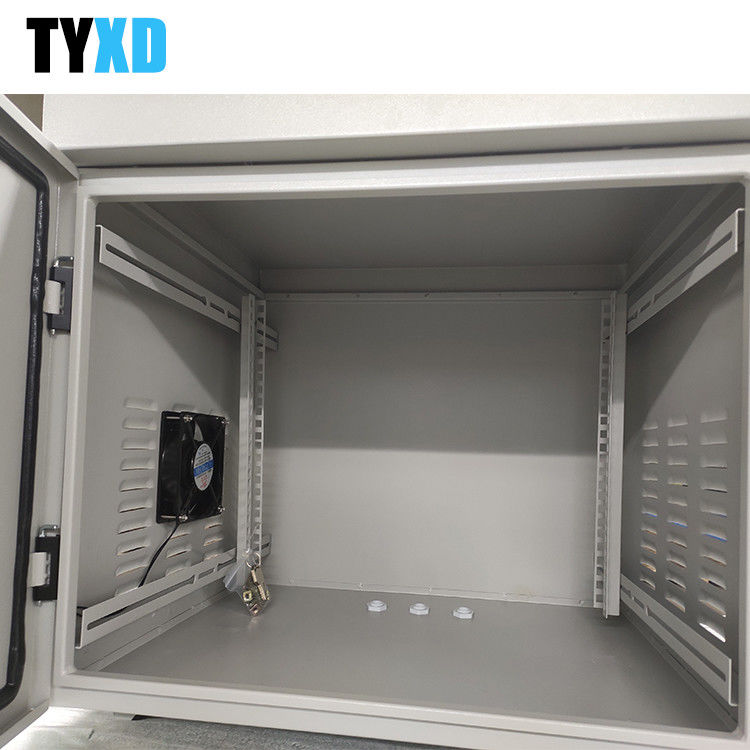

Inside view: Mounting rails (You can chose 2 or 4 )

IP54 Outdoor 8U / 12U Steel Wall Mount Small Network  Rack ODM / OEM cabinet 0



Bottom view: 3 glands and 2 strenthen base



IP54 Outdoor 8U / 12U Steel Wall Mount Small Network  Rack ODM / OEM cabinet 1

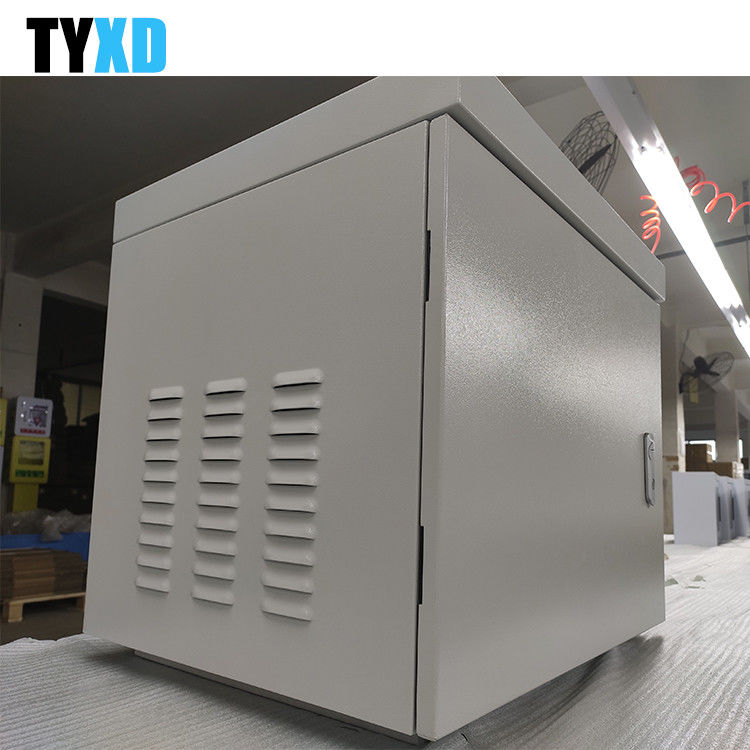

Side view :  Vents and blinds



IP54 Outdoor 8U / 12U Steel Wall Mount Small Network  Rack ODM / OEM cabinet 2

Details


8RU Vented Outdoor Server Rack, IP45 Vented



The outdoor server rack also has a fan kit included



Supplied fully assembled

Lockable front door

Front door has 130 degrees of movement, swinging from left to right

Water and dust proof polyurethane door joint strip

Adjustable 19” mounting rails front and rear

Front door rubber seal







SPECIFICATIONS



Dimensions - External (mm): 570(w) x 500(d) x 500(h)


Colour: Grey, RAL 7035


Protection Rank : IP54


RU Size: 8RU


Material: Cold rolled steel


Surface Finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated


Load Capacity: 40KG
