12U Cold Rolled Steel IP55 Outdoor Network Cabinet With Air Conditioner

12U Cold Rolled Steel IP55 Outdoor Network Cabinet With Air Conditioner

12U Cold Rolled Steel IP55 Outdoor Network Cabinet With Air Conditioner
12U Cold Rolled Steel IP55 Outdoor Network Cabinet With Air Conditioner
12U Cold Rolled Steel IP55 Outdoor Network Cabinet With Air Conditioner
Product Details:
Place of Origin: China
Brand Name: TYXD
Model Number: RC-67
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: USD 108.7-153.5
Packaging Details: Carton box and foam protection
Delivery Time: 15 days
Payment Terms: L/C, D/P, T/T, Western Union
Contact Now
Detailed Product Description
Material: Cold Rolled Steel / Stainless Steel Size: 12U(600mm)*600*600mm
Thickness: 1.2 / 1.5mm Finish: Powder Coating
Protection Level: IP54 Logo: Silk Print
Payment: L/C T/T
High Light:

server rack cabinet

,

data center cabinet

12U Cold rolled steel outdoor IP55 outdoor network cabinet with air conditioner



A 12U Outdoor IP55 rated data cabinet 600mm wide and 450 / 600 / 800mm deep.

Applications include open areas subjected to falling dirt and wind blown dust particles, rain, snow or splashing water. Includes fully gasketted door, isolated cable entries provide protection against water and dust ingress.

1.0mm / 1.2mm / 1.5mm (Depends on the depth) thick monoblock welded construction, with Epoxy Polyester type powder coating to RAL 7035 Light Grey colour, providing corrosion resistance. (Thickness can be customized)

Fresh air filtered inlets to the sides of the cabinet provide natural ventilation. Also can add air systerm to keep cooling.





Size 12U*600*600mm/Customized
Depth 450 / 600 / 800 mm
Material Cold Rolled Steel/Stainless steel
Finish Powder coating
Pretreatment Phosphorization
Mounting rail 4
ODM/OEM Acceptable





19" Rack Outdoor Fiber optic 12U High, D:45CM / 60CM / 80CM, Use for Equipment active device 19" standard. The Cabinet compliant with IP55 (Dust and water protection) standard. One door lockable and dust, made from "CNC" Foam Gaskets" style high quality grade for waterproof and dust



19" Standard Rack - 12U High Cabinet Rack - Deep: 45cm / 60 cm / 80 cm - Double folded gutter at door frame to increase rigidity and prevents water from entering while door is opened.



The front door is waterproof, humidity and dustproof sealing made from "CNC foam Gaskets", good adhesion to coated surfaces.



Can support hinges provide 130 deg door opening service



Material made from Cold rolled steel / 304 Stainless steel / 316 Stainless steel







How to choose outdoor network cabinet material:



1. Cold rolled steel : General waterproof, waterproof requirements are not high



2. 304 Stainless steel: A place where there is a lot of precipitation, and the precipitation intensity is high.



3. 316 Stainless steel: Places with high precipitation intensity and high requirements for corrosion prevention, such as seaside, jungle and forest.



Details


12RU Vented Outdoor Server Rack, IP45 Vented



The outdoor server rack also has a fan kit included



Supplied fully assembled

Lockable front door

Front door has 130 degrees of movement, swinging from left to right

Water and dust proof polyurethane door joint strip

Adjustable 19” mounting rails front and rear

Front door rubber seal





Customers can choose to add air conditioning has been better cooling effec


12U Cold Rolled Steel IP55 Outdoor Network Cabinet With Air Conditioner 0

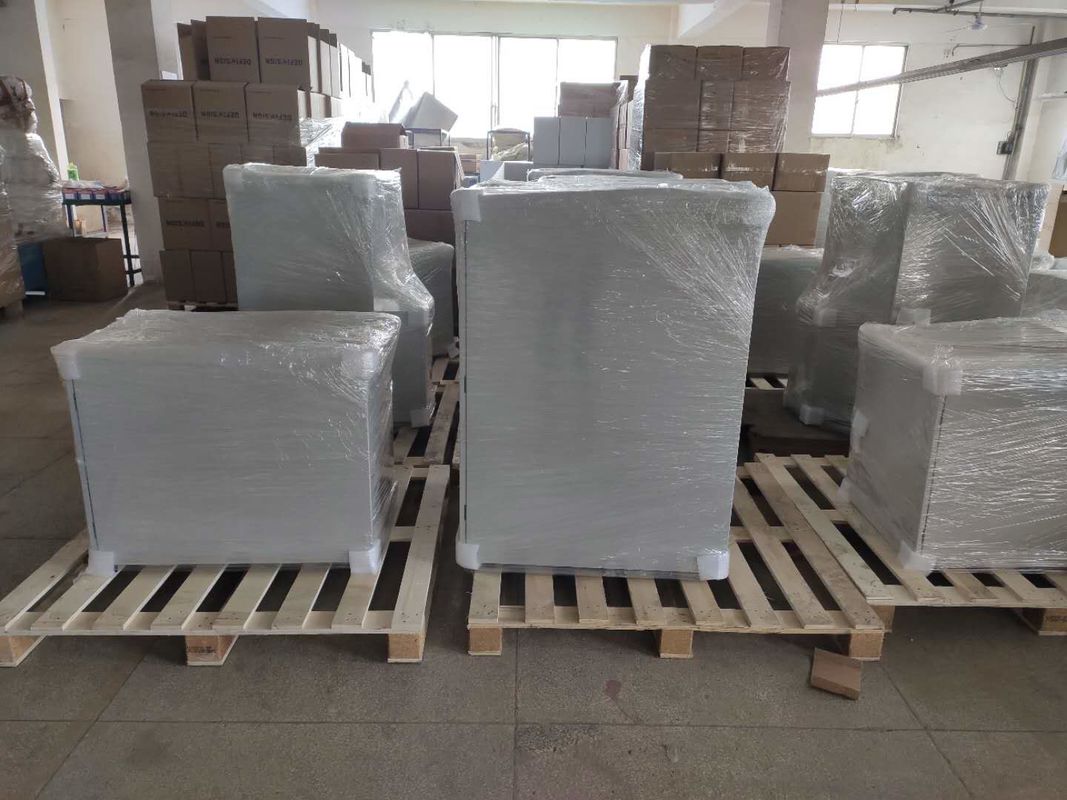

All goods are shipped using custom pallets to avoid collisions, reduce volume and thus reduce freight costs for customers. And each piece of goods will be affixed with marks, more convenient for customers to confirm.


12U Cold Rolled Steel IP55 Outdoor Network Cabinet With Air Conditioner 1


Real manufacturers, real materials, Advanted processing equipment, it's trustworthy





SPECIFICATIONS



Dimensions - External (mm): 600(w) x 600(d) x 600(h)


Colour: Grey, RAL 7035


Protection Rank : IP54


RU Size: 12RU


Material: Cold rolled steel


Surface Finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated


Load Capacity: 80KG
